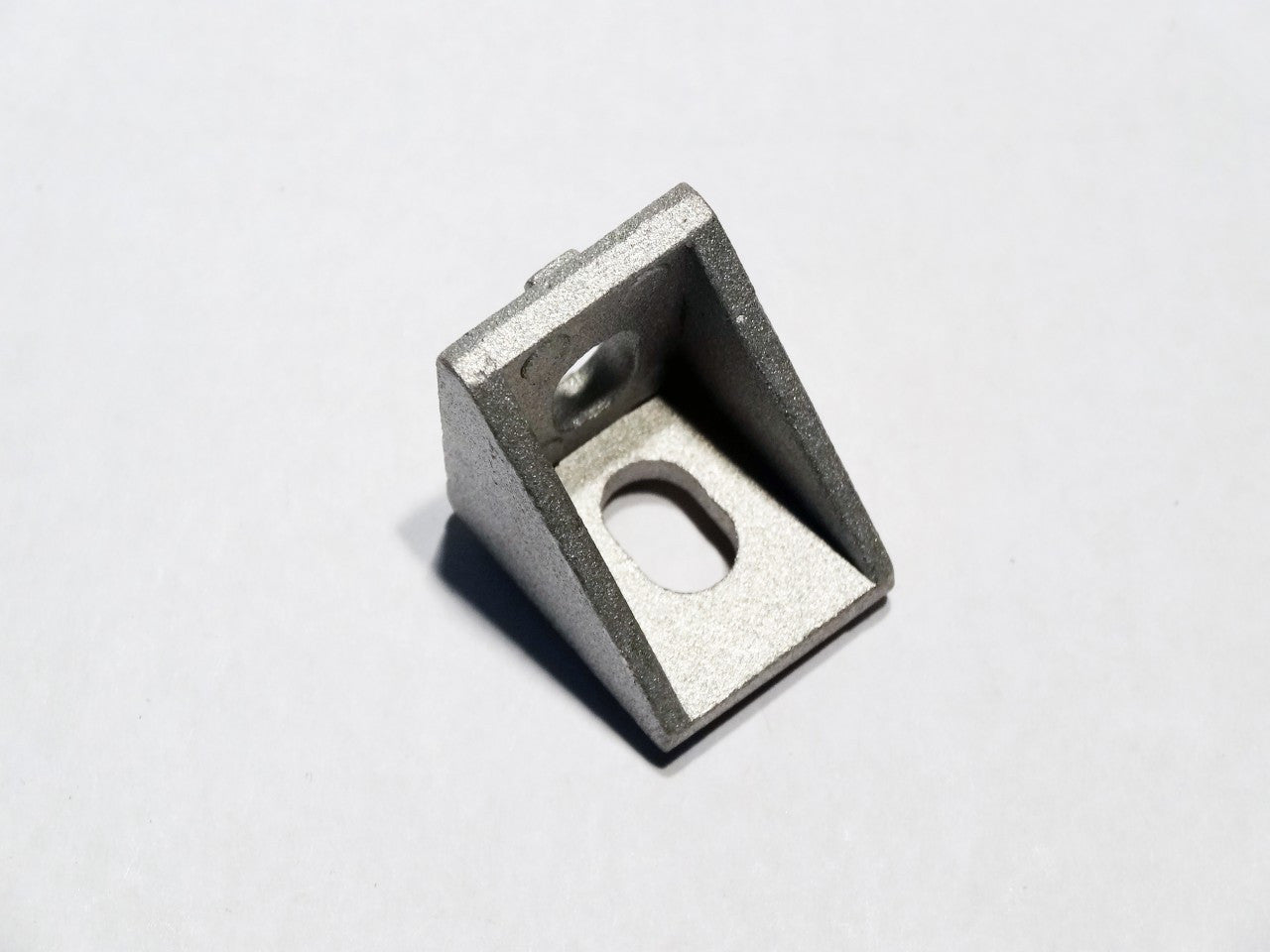

Cast Corner Bracket

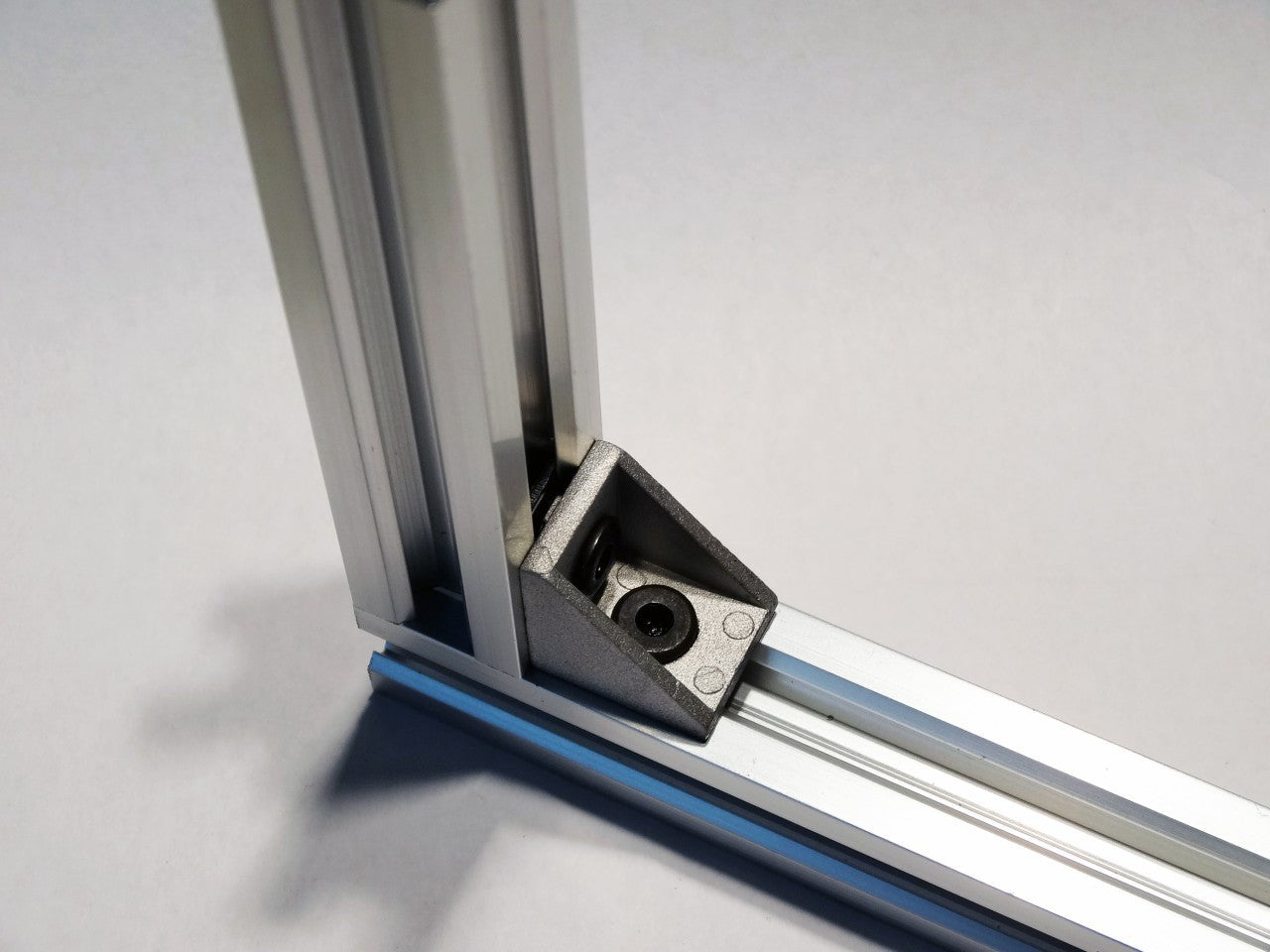

These are standard 20mm x 20mm x 17mm (with a 4mm wide T-slot tab) and are used to connect (2) V-Slot or 20 Series T-slot aluminum extrusions together for a 90 degree connection.
NOTE: Since the cast comer brackets have stand off teeth (for locating in the slot) in one direction you use 10mm Low Profile Screws and for the flush mount direction you use the 8mm low profile screws along with the M5 Tee Nuts. You can also easily file down the stand off teeth for a flush fit and use 8mm screws on all sides.
