Graphic Controller Adapter for RAMPS-based Boards

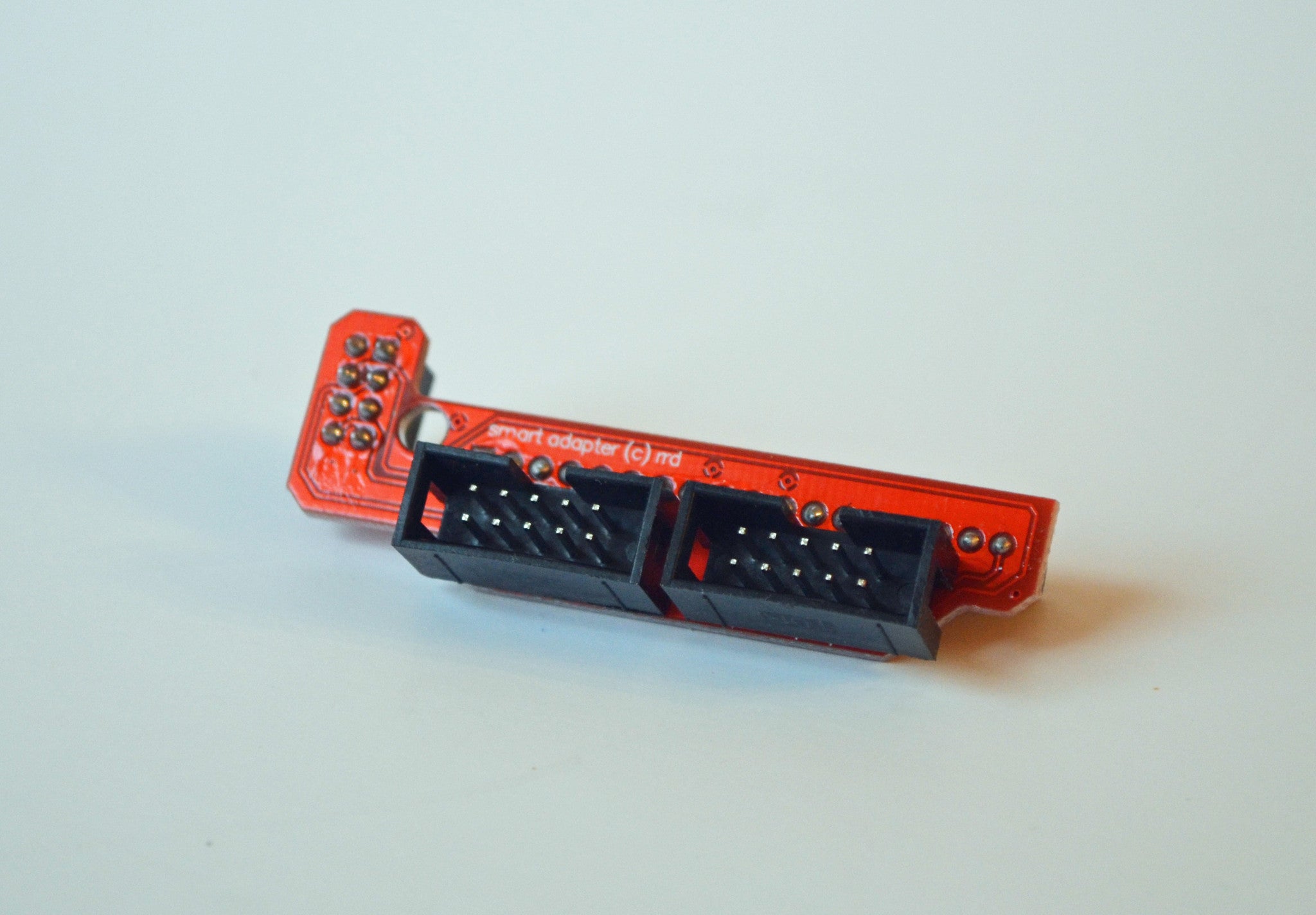

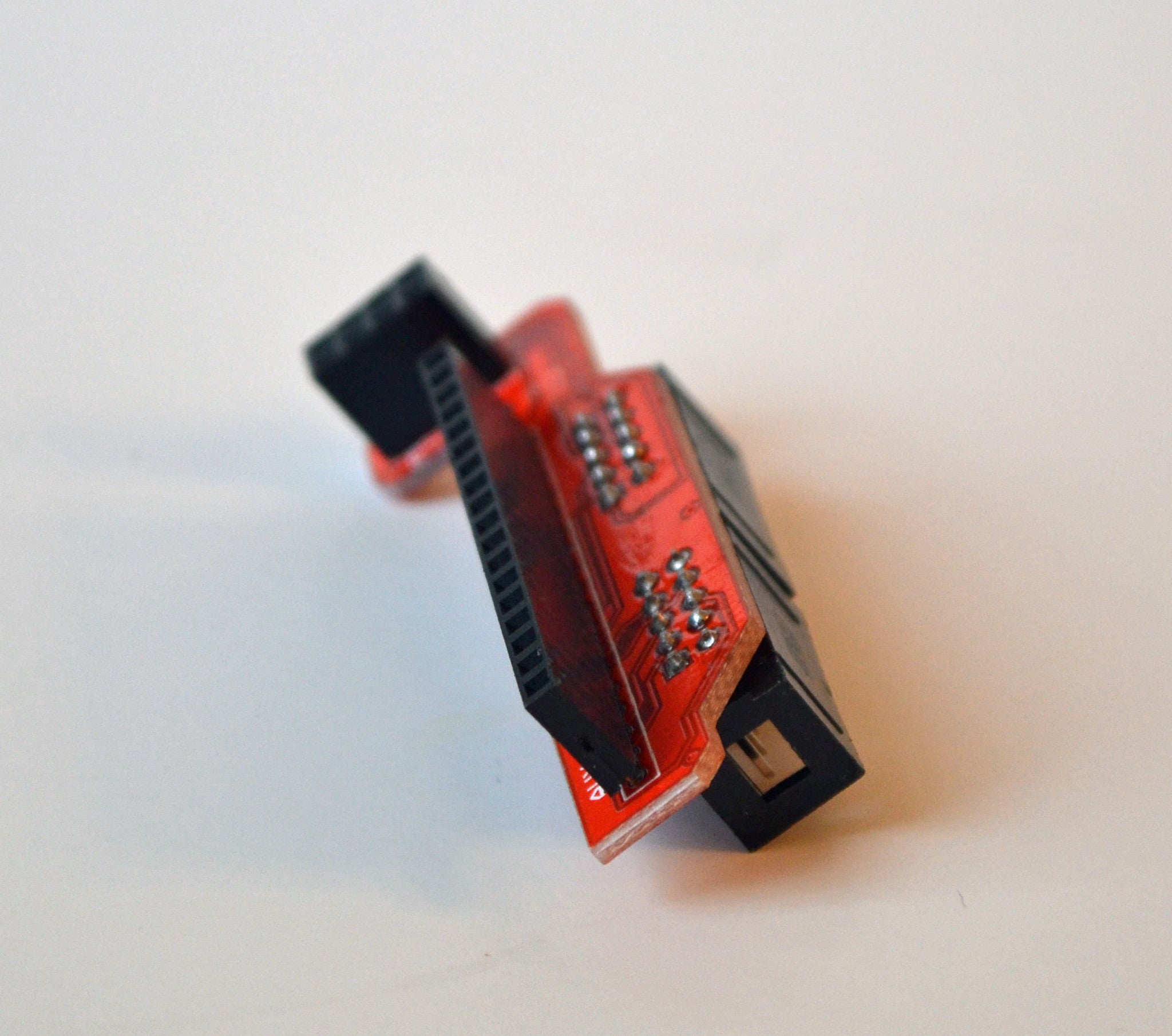

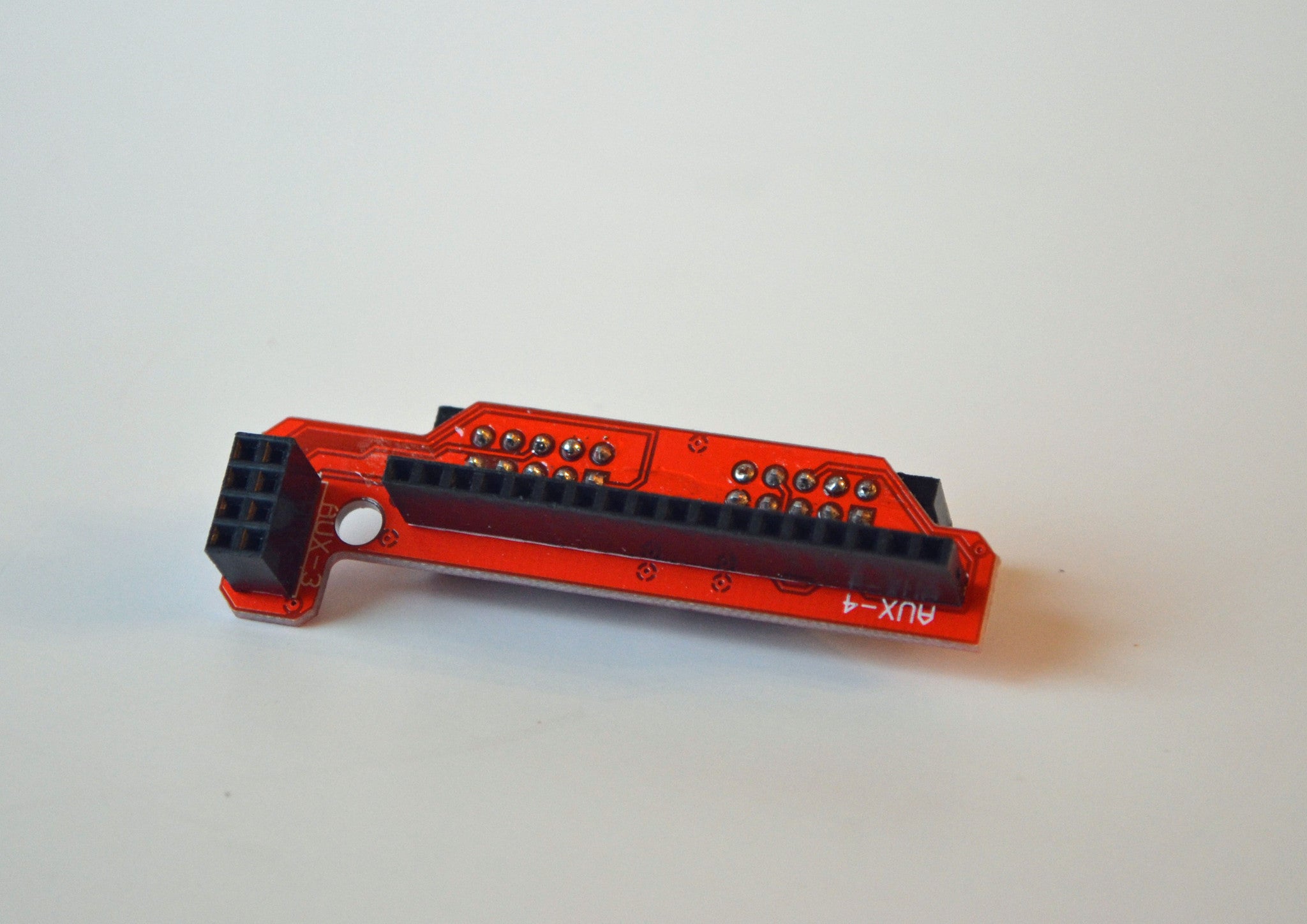

This adapter is used to connect the Full Graphic Smart Contoller or other compatible controllers to the RAMPS boards used in many 3D printers. The adapter's connectors plug right into the headers on the RAMPS board, and the graphic displays plugs right into the adaptor with 2 ribbon cables.

(Note: Displays and/or adapters from different manufacturers sometimes have the ribbon cable sockets reversed. If using displays and adaptors from different sources you may have to turn both ribbon cable connections 180°. This can be done easily by either filing off the tab on the ribbon cable, or cutting a new slot on the opposite side of the ribbon connector socket.)
