Bowden Fitting Set for Creality 3D Printers

Replace the damaged, worn out, or defective pneumatic bowden fittings on your Creality 3D printer.

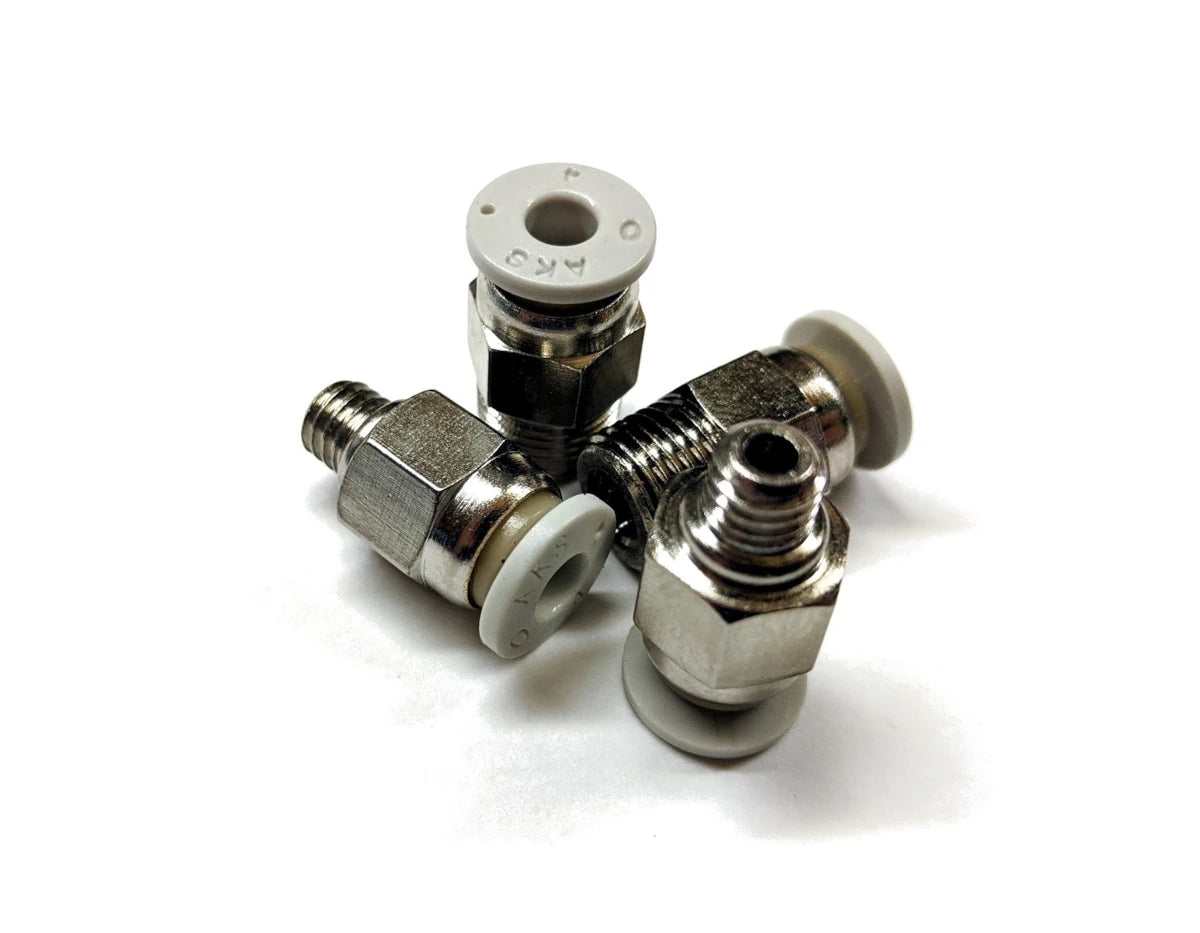

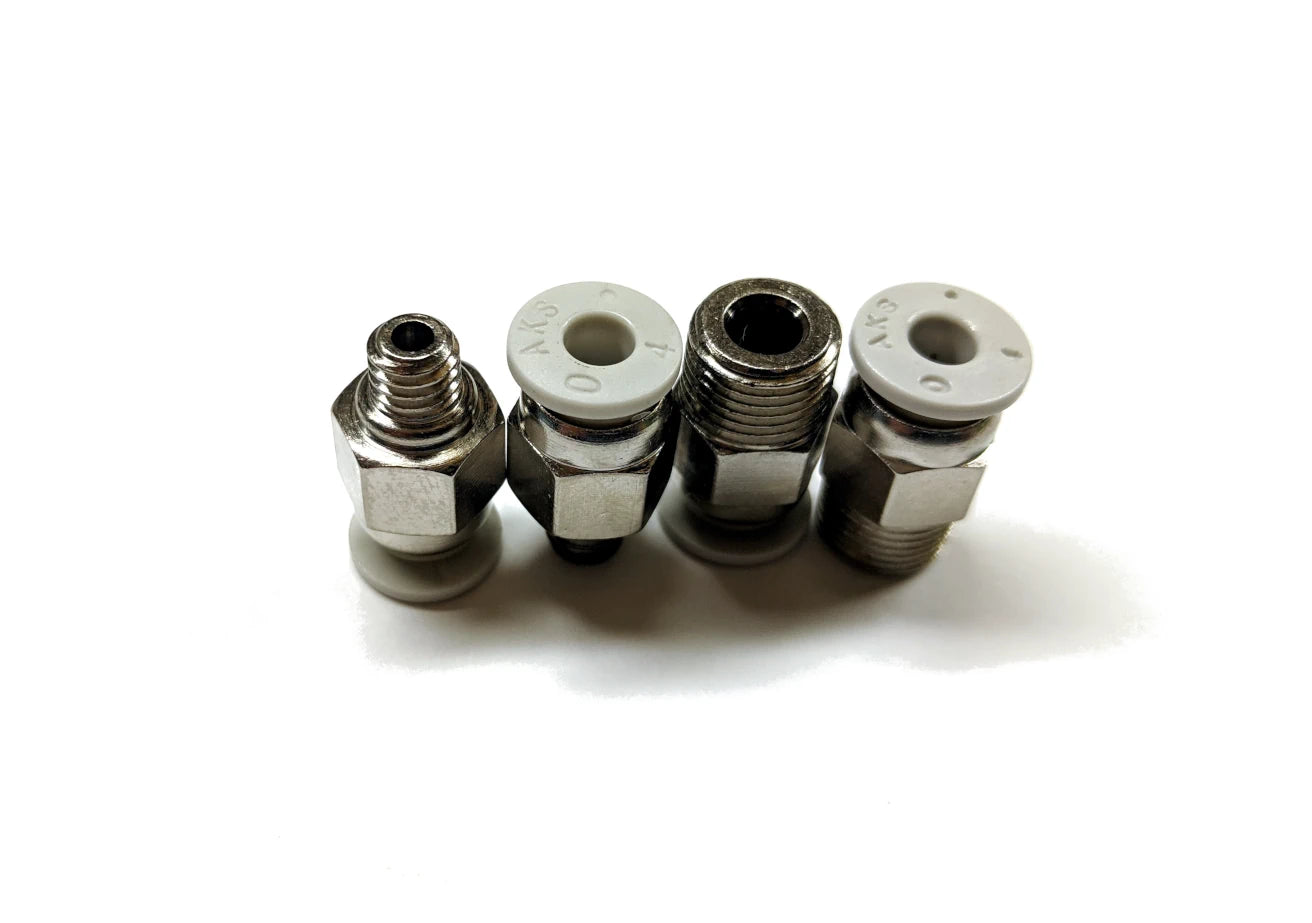

This is a set of replacement pneumatic push-to-connect fittings for most Creality 3d printers using a bowden tube between the printers extruder motor and hotend.  This set includes one PC4-M6 fitting for use on the motor/extruder side of the bowden tube, and one PC4-M10x0.9 fitting for use with the stock hotend.

The PC4-M6 fittings are used in the Creality 3d printers on the motor/extruder side  These fittings have an internal step that does not allow the PTFE tube to slide completely through the fitting. Note: These fittings are will not fit on Creality 3D printers that come with Bondtech extruders (ie. the CR-10MAX) The Bondtech Extruders use a fitting with a different thread pitch (G1/8)

Specifications(PC4-M6):

• Wrench size:               10mm
• Threads:                      M6x1mm
• Internal diameter:      ~4.1mm
• Overall length:            ~20.4mm
• Weight:                          ~4.4g
• Sized for 1.75mm filament Bowden tubing (color may vary, current selection is silver colored with a white top)

The PC4-M10x0.9 size fitting is used in the Creality CR-10 and Ender series for the hotend/nozzle side of the Bowden tube These fittings have an internal diameter of 4.1mm and are designed to allow the tube to pass all the way through the fitting and down into the hotend in the stock Creality design.

Specifications(PC4-M10x0.9):

• Wrench size:               10mm
• Threads:                      M10x0.9mm
• Internal diameter:      ~4.1mm
• Overall Length:           ~19.2mm
• Weight:                        ~5.3g
• Sized for 1.75mm filament Bowden tubing
