Motor Mount Plate for Nema 23 Stepper Motor

Shipping calculated at checkout.

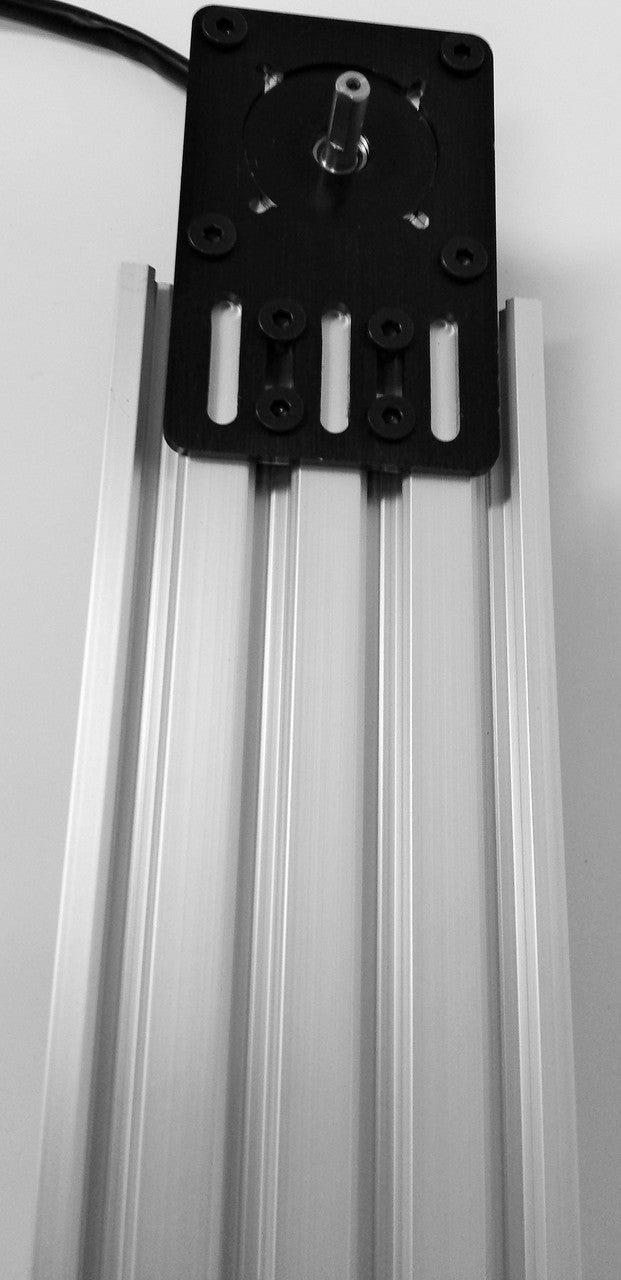

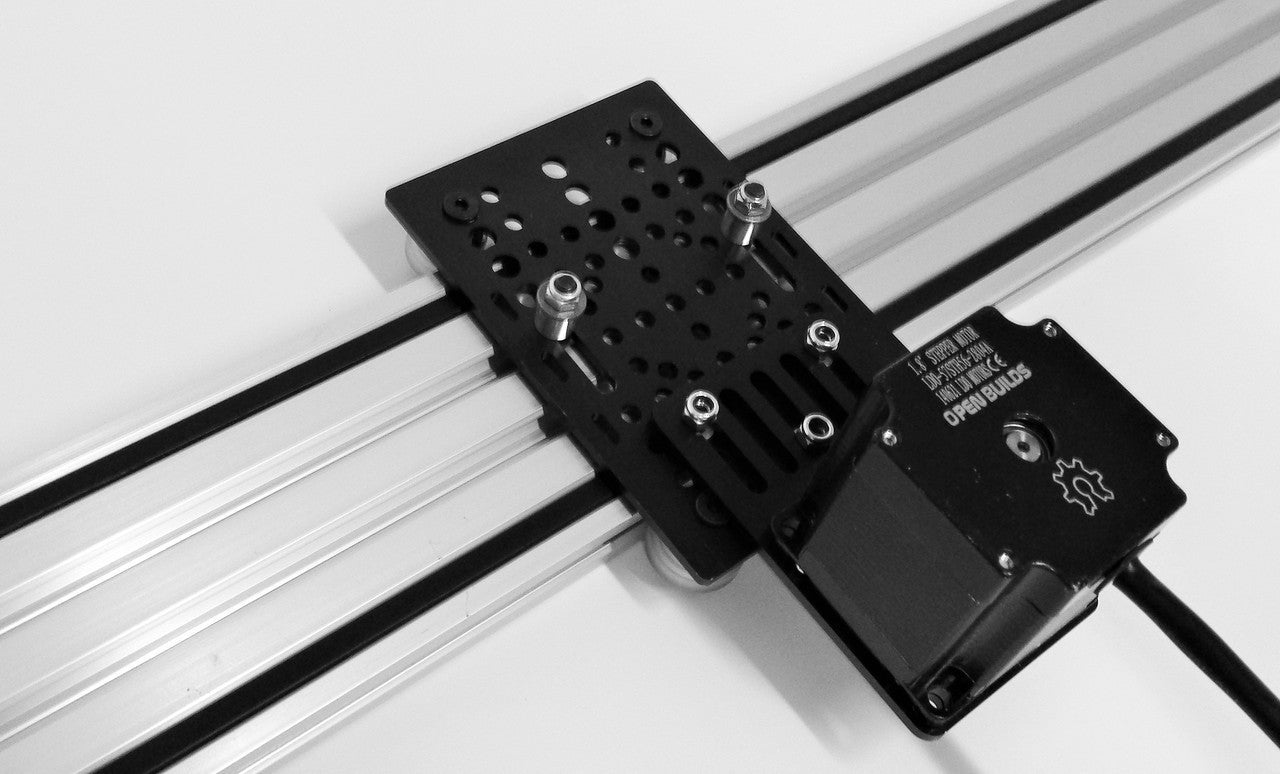

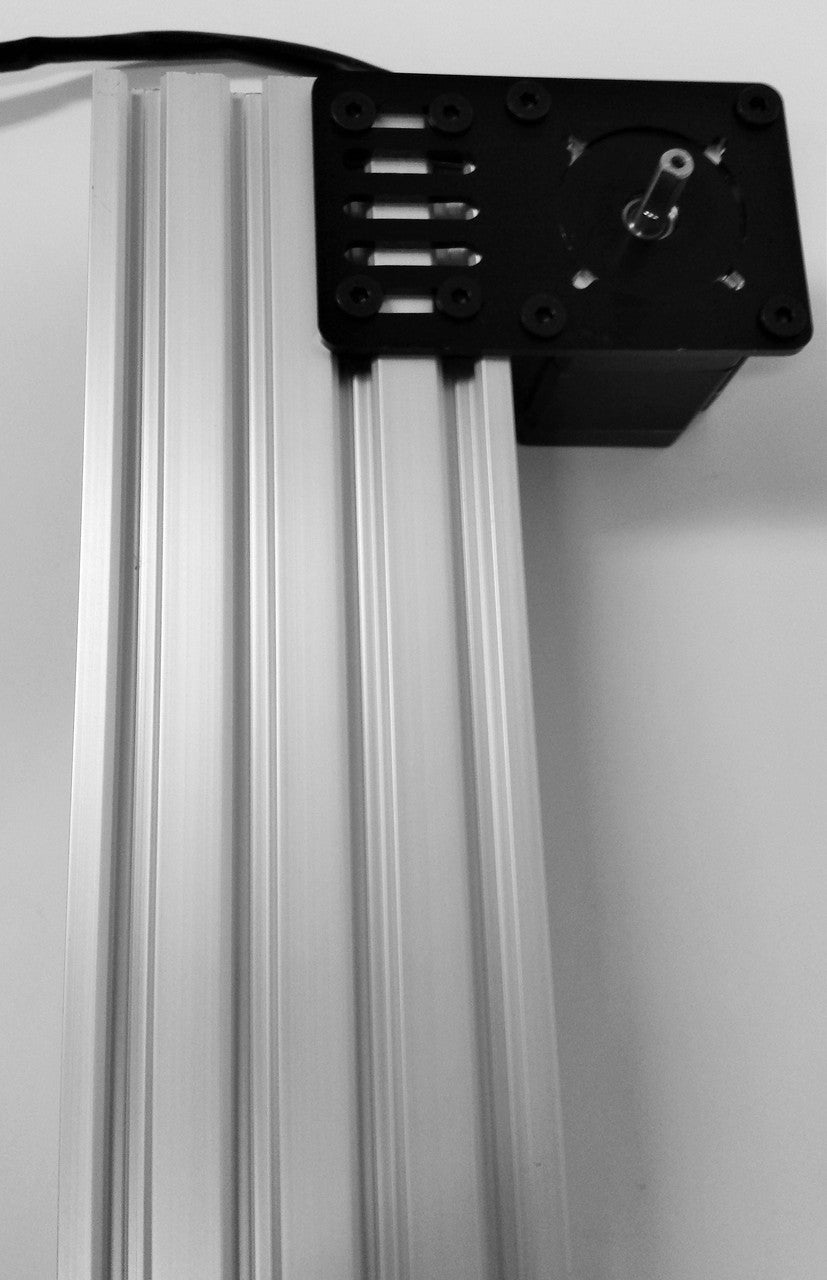

Easily mount a NEMA 23 Stepper motor onto any plate or V-Slot to create a belt & pinion or any other type of actuator.



This mount works great with the custom OpenBuilds NEMA 23 stepper motors or Nema 23 High Torque stepper motors. (sold separately). If you need a Nema 23 sized motor with different specifications for your application we recommend checking out the selection of Nema 23 motors at StepperOnline.com (affiliate link). We have used their motors in several of our personal builds and have been very satisfied with the results.

Features:

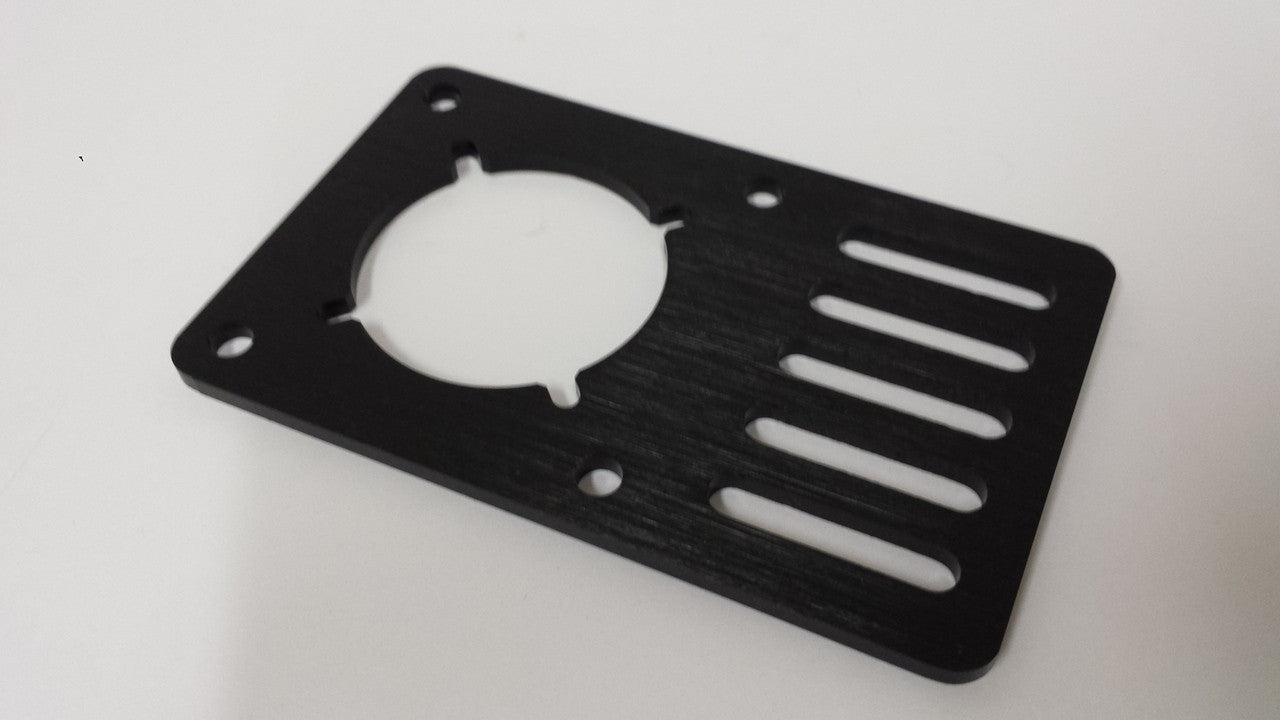

  • Multiple screw holes to accommodate several mounting configurations.
  • Slotted mounting holes make adjusting belt tension easy.

Includes:

  • (1) Motor Mount Plate – NEMA 23 Stepper Motor

Specifications:

  • Version - V1
  • Size:  60mm x 90mm
  • Thickness:  3mm
  • Material:  6063 - T6 Aluminum
  • Finish:  Anodized Aluminum
  • Color:  Black
